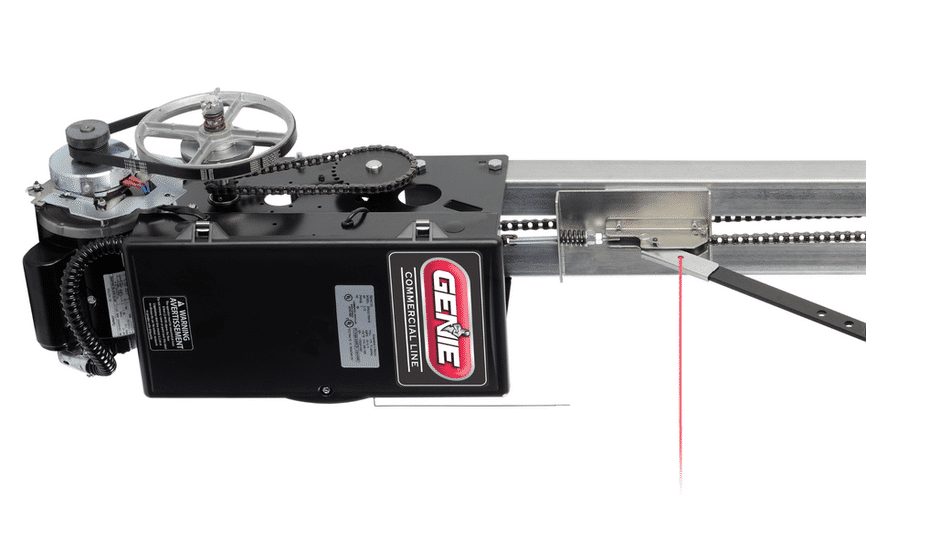

GCL-T
The GCL-T is designed for standard lift sectional doors that have a 30-cycle or fewer duty requirements. Advanced features and robust mechanical design combine to provide a standard-duty operator that sets a new standard for productivity.
Advantages
- MultiVolt® – Order phase-specific operator for the job and have the ability to select the right voltage on the job site.
- Single Phase: 115/208/230V AC
- Three Phase: 208/230/460V AC
- 575V AC voltage models available separately
- Modular design with optional expansion boards for an advanced timer to close, and auxiliary output functionality.
- LCD display with intuitive setup menu. Provides real-time status and trouble-shooting assistance.
- Internal receiver with the ability to individually add/delete up to 50 Intellicode® transmitters directly from the LCD display.
- EZ Limit® provides for push-to-set limits that stay synchronized with door through a long-term loss of power.
- TensiBelt® primary drive reduction eliminates the need to adjust belt tension.
- Open/close/stop and setup keys included on the control board. Keeps all controls near the LCD display convenient for set up.
- The quiet trolley carriage with high-strength wear pads eliminates the need to apply grease to rails.
Standard Features
- UL 325 2010 approved.
- 11.5 inches per second door speed.
- EZ Limit® electro-mechanical limits.
- MultiVolt® voltage simplification.
- Max run timer automatically adjusts to up and down run time.
- TensiBelt® primary reduction.
- Delay on reverse.
- 16-character LCD display.
- Advanced radio receiver displays and stores activation by transmitter ID number on the LCD screen.
- 3-button control station.
- 2-year/20,000 cycle warranty.
- Programmable mid-stop.
- Drawbar disconnect for emergency manual operation.
Product Information

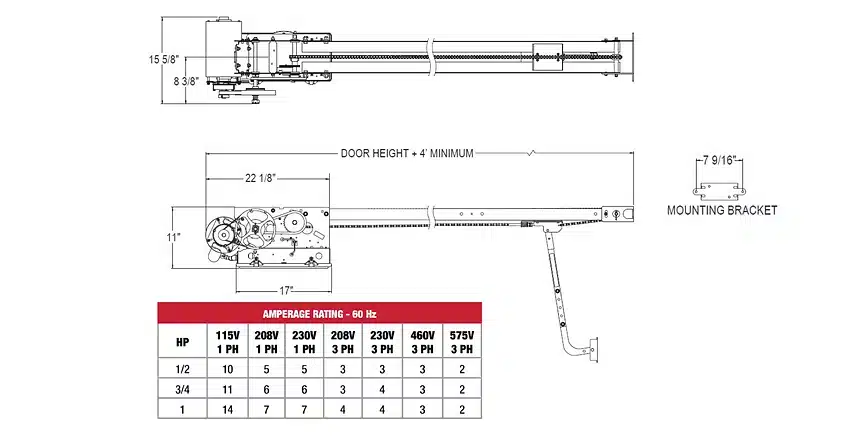

Shop Drawings
