Republic Standard Doors
Standard Door Specifications
Door styles

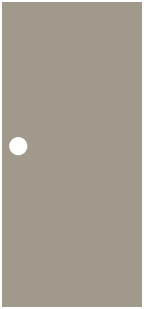

F

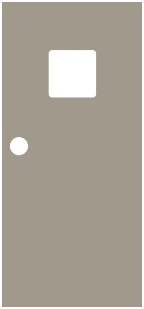

V

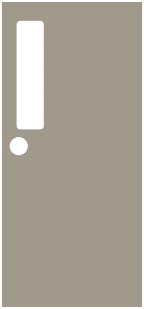

N

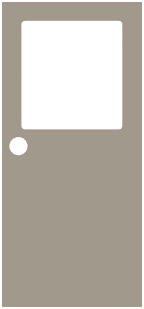

G

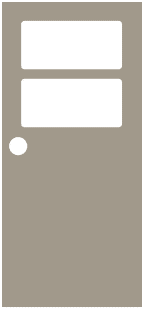

G2

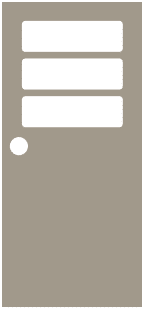

G3

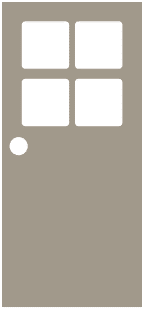

G4

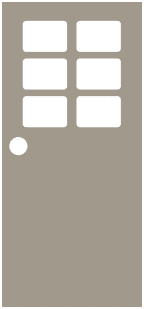

G6

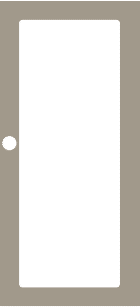

FG
LI

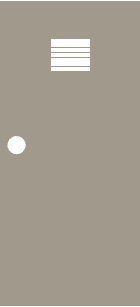

TLI

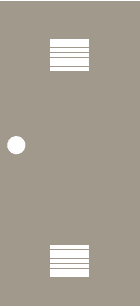

LLI

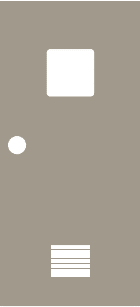

VLI

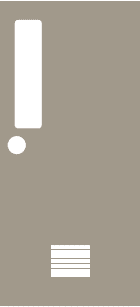

NLI
GLI

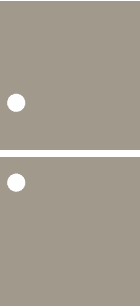

D
For complete steel door construction specifications refer to ANSI/SDI-100. Selection of the appropriate steel door should be based on the following criteria:
1. Frequency of use (low, moderate, high)2. Subjection to and degree of possible abuse
2. Hardware requirements
4. ADA requirements
5. Fire code(s) regulations
6. Sound retardation and/or insulation requirements
7. Design and appearance
8. Conformance to local building codes
Finish paint colors
White
Stone White
Cream Buff
Primer
Midnite Bronze
Black
Due to variations in printing processes, actual colors may vary slightly from those pictured. Other colors available upon request.

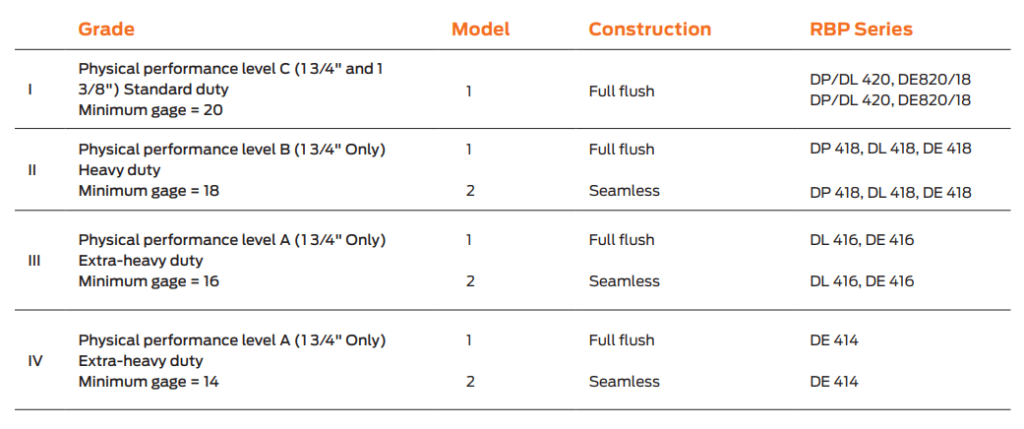

SDI classifications
Grade
Model
Construction
RBP Series
I
Physical performance level C (1 3⁄4″ and 1
3⁄8″) Standard duty
Minimum gage = 20
1
Full flush
DP/DL 420, DE820/18
DP/DL 420, DE820/18
II
Physical performance level B (1 3⁄4″ Only)
Heavy duty
Minimum gage = 18
1
2
Full flush
Seamless
DP 418, DL 418, DE 418
DP 418, DL 418, DE 418
III
Physical performance level A (1 3⁄4″ Only)
Extra-heavy duty
Minimum gage = 16
1
2
Full flush
Seamless
DL 416, DE 416
DL 416, DE 416
IV
Physical performance level A (1 3⁄4″ Only)
Extra-heavy duty
Minimum gage = 14
1
2
Full flush
Seamless
DE 414
DE 414
